Suitable Supplies | DTM Medical

Printable Slides with Signature Slide Printer (Classic version, 078102) and Signature EVO Slide Printer (078142)

Manufacturer	Type	ArtNo. (REF)	Print. temp.	Lot / Batch No.	Tested colour	PrintResult	Comments
Bio-Optica Milano S.p.a.	Bio Microscope Slides, 45° clipped corner	09-1030	80-90	171215	white	good quality	from the same batch successfully tested colors: blue (09-1010), yellow (09-1040), pink (09-1000), orange (09-1050)
Bio-Optica Milano S.p.a.	Bio Microscope Slides, 45° clipped corner, positively charged	09-2000	85-100	171215	white	good quality
Engelbrecht Medizin und Labortechnik GmbH	Microscope Slides 90° clipped corners WHITE	111240A	80-90	20180429	white	good quality	ISO 8037/1, available in different colours
Engelbrecht Medizin und Labortechnik GmbH	Objektträger Plus, slides 45° edges clipped corners WHITE, positively charged	11310	80-90	H201912	white	good quality
Klinipath	KP Frost Printer Slides - official 90°, but cut edges	PR-001	80-90	22/02/2017	white	good quality	available in different colours
Klinipath	KP Frost Printer Slides, positive charged - official 90° but cut edges	PR-P-001	80-90		white	good quality	available in different colours
Waldemar Knittel Glasbearbeitungs GmbH	StarFrost Thermal Printer Paint, white, 45°		120-130	KN00000049700	white	good quality	ISO 8037/1, available in different colours
SLEE medical GmbH	StarFrost Microscope Slides, cut edges (45°)		120-130	KN00000045685	white	good quality	ISO 8037/1
SLEE medical GmbH	StarFrost Microscope Slides, cut edges (45°), adhesive		120-130	KN00000045721	white	good quality	ISO 8037/2
SLEE medical GmbH	StarFrost Microscope Slides, cut edges (45°), advanced adhesive		120-130	KN00000045694	white	good quality	ISO 8037/3
Süsse Labortechnik	Süssefrost white	11236A45	80-90		white	good quality	available in different colours
Süsse Labortechnik	Süssefrost Plus 45° white	041300A45		088	white	good quality
VWR	VWR Microscope slides, Premium Printer Slides, cut edges	631-1183	80-90	14/04/2017	white	good quality

Additional printable Slides, not recommended, with Signature High Pressure (XTRA Force) Slide Printer (078108) and Signature EVO Slide Printer (078142)

Manufacturer	Type - ArtNo. (REF)	Print. temp.	Result
Dako	Flex - K8020	150	suitable quality
Menzel	Superfrost Plus - J1800AMNZ	190	suitable quality
ThinPrep	Pap Test - 70373-001	140	good quality

DTM Medical tested the above mentioned slides and will repeat this tests time by time. The manufacturers of the above mentioned slides are responsible for ensuring a consistent quality.

Please note: All Laboratories must perform their own tests to ensure that the printed slides are resistant against the used reagents and procedures. This is beyond the control of DTM Medical.

Please pay attention to create a suitable template regarding the printable area and please adjust a proper offset setting (margins of the printable area) if necessary. This setup is only necessary once. Details are described in our PTTemplate- and PTLab manual.

Manufacturer	Type	Description	Comments	PrintResult	Print Temp.	Lot / Batch No.	Tested color	Printing surface angle	Homepage
CellPath	EAI-0502-72B	SYSTEM III SLOTTED CASSETTE - WHITE (THREADED THERMAL)	available in different colors and as single version	good printing results even with very small signs	90	03812024	white	45°	www.cellpath.com
CellPath	EAI-0602-72B	SYSTEM III BIOPSY CASSETTE - WHITE (THREADED THERMAL)	available in different colors and as single version	good printing results even with very small signs	90	03812028	white	45°	www.cellpath.com
CellPath	EAI-0702-72B	SYSTEM III MICRO BIOPSY CASSETTE - WHITE (THREADED THERMAL)	available in different colors and as single version	good printing results even with very small signs	90	03811899	white	45°	www.cellpath.com
Sakura	Tissue Tek 8170	Embedding Cassette, white, taped cassettes	only the US-Version is recommended - not available in Europe	good printing results even with very small signs	90		white	45°
Simport	M405-2	Unisette Tissue Processing Cassette, white, single cassettes, different colors available	available in different colors and as taped version	good printing results even with very small signs	90	12877768	white	35°	www.simport.com
Simport	M406-2	Unisette Biopsy Processing Cassette, white, single cassettes, different colors available	available in different colors and as taped version	good printing results even with very small signs	90	10127708	white	35°	www.simport.com
Simport	M407-2	Micromesh Biopsy Processing Cassette, white, taped cassettes	available in different colors and as taped version	good printing results even with very small signs	90		white	45°	www.simport.com
Bio Optica	07-9700	Bio Cassette	available in different colors as taped version	good printing results even with very small signs	80-90	89304	white	45°	www.bio-optica.it

DTM Medical tested the above mentioned embedding cassettes and will repeat this tests time by time. The manufacturers of the above mentioned embedding cassettes are responsible for ensuring a consistent quality.

Please note: All Laboratories must perform their own tests to ensure that the printed cassettes are resistant against the used reagents and procedures. This is beyond the control of DTM Medical.

Please pay attention to create a suitable template regarding the printing surface angle and the cassette ends (rounded or square) and please adjust a proper offset setting (margins of the printable area) if necessary. This setup is only necessary once. The printing temperature may vary from printer to printer – so a range between 80 to 100 is possible. Details are described in our PTTemplate- and PTLab manual.

PE SKU	Name	Coil Colour	Chemistry Composition	Ribbon-ID	Suitable for	Comment	Details
058103	Standard Colour Ribbon	grey	Resin	17255	Signature Slide Printer (SP) - both standard and high-pressure units	low chemical resistance (testing ahead necessary!), available	Colour Standard Ribbon, 1000 prints per ribbon

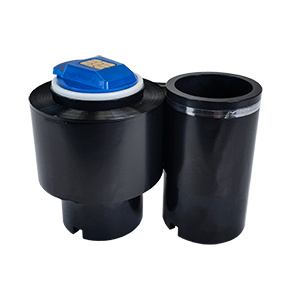

058105	TC1 Black Ribbon	black	Resin	16255	Signature Slide (standard and high pressure units) & Cassette Printers (CP)	high chemical resistance (testing ahead necessary!), standard black, available	Monochrome TC1 Black Ribbon, 5.000 prints per ribbon (SP), 4.300 prints per ribbon (CP)
058106	TC2 Colour Ribbon	black (old), blue (new)	Wax/Resin	19255	Signature Slide Printer - Standard units only	nearly no chemical resistance, available	Color Ribbon TC2, 1.000 prints per ribbon

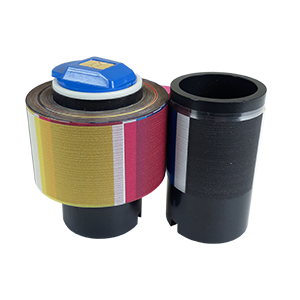

058108	TC1 Colour Ribbon	black	Resin	20255	Signature Slide (standard and high pressure units) & Cassette Printers (CP)	starting with firmware 1.22 CP/1.98 SP and higher, good chemical resistance (testing ahead necessary!), standard colour, available	Color Ribbon TC1, 550 prints per ribbon

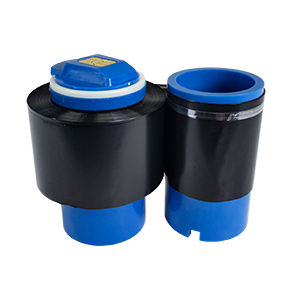

058109	TC2 Black Ribbon	blue	Wax/Resin	18255	Signature Slide Printer - Standard units only	good print with better chemical resistance, (testing ahead necessary!), available	Monochrome TC2 Black Ribbon, 5.000 prints per ribbon

Product	Manufacturer	Signature supported	Model	Integration
Nexus	Nexus AG	yes	SP, CP	via Primera Printer Driver
dc-Pathos	DC-Systeme	yes	SP, CP	via Primera Printer Driver
PathoPro	ifms GmbH	yes	SP, CP	via Primera Printer Driver
DaVinci	MIPS	yes	SP, CP	via Primera Printer Driver
FinaLims	Finalist	yes	SP, CP	via Primera Printer Driver
Xantos	Programmierfabrik	yes	SP, CP	via Primera Printer Driver
Unilab	Alphasoft	yes	SP, CP	via PTLab PE
Pathowin+	Basys Data	yes	SP, CP	via Primera Printer Driver
Diamic	Infologic-Santé	yes	SP, CP	via Primera Printer Driver
